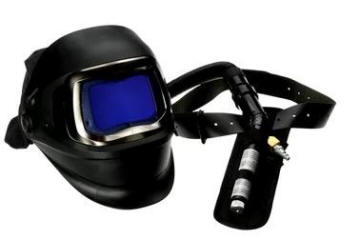

3M™ Speedglas™ Welding Respirators -
Fresh-Air III Supplied Air Regulator (SAR)


3M 9100 supplied air

3M™ 9100-Air w/Fresh-Air III SAR

  • The 3M™ Speedglas™ Welding Helmet 9100 can be used with a variety of filters for superior optical performance.
  • Ultraviolet (UV) and infrared (R) protection at all times, in all states.
  • Side exhaust vents to channel exhaled air.
  • Increased coverage for ear and side of head protection.
  • Shade 5 side windows.
  • Choice of Auto Darkening Filters 9100V, 9100X or 9100XX.
  • For welding environments where supplied air protection is needed with choice of heating or cooling valve.
  • MFR Part No's w/V100 cooling valve:  25-5702-10SW, 25-5702-20SW, 25-5702-30SW.
  • MFR Part No's w/V200 heating valve:  25-5802-10SW, 25-5802-20SW, 25-5802-30SW.
  • Starting at just $1,080.

3m 9100fx air


3M™ 9100FX-Air w/Fresh-Air III SAR

  • The 3M™ Speedglas™ Welding Helmet 9100FX.
  • Includes all the features of the 9100 helmet.
  •  Features a flip-up assembly that can be lifted to expose a clear 8 in x 4.25 in (200 mm x 110 mm) faceshield.
  • Shade 5 side windows.
  • Choice of Auto Darkening Filters 9100V, 9100X or 9100XX.
  • For welding environments where supplied air protection is needed.
  • MFR Part No's w/V100 cooling valve:  26-5702-10SW, 26-5702-20SW, 26-5702-30SW.
  • MFR Part No's w/V200 heating valve:  26-5802-10SW, 26-5802-20SW, 26-5802-30SW.
  • As low as $1,261.
3M 9100-Air Fresh-Air III SAR w/Cooling Valve
Qty


3M 9100FX-Air Fresh-Air III SAR w/Cooling Valve
Qty

3M 9100-Air Fresh-Air III SAR w/Heating Valve
Qty


3M 9100FX-Air Fresh-Air III SAR w/Heating Valve
Qty

3M 9100MP Freah-Air SAR

3M™ 9100MP w/Fresh-Air III SAR

  • The 3M™ Speedglas™ Welding Helmet 9100MP (Multiple Protection).
  • Includes all the features of the 9100 helmet.
  • Offers five levels of welding protection:  head, eye, face, respiratory and optional hearing combined into one system.
  • Features a flip-up assembly that can be lifted to expose a clear 8 in x 4.25 in (200 mm x 110 mm) faceshield.
  • Hard hat shell.
  • Optional 3M™ Peltor earmuff assembly M-985
  • Shade 5 side windows.
  • Choice of Auto Darkening Filters 9100V, 9100X or 9100XX.
  • For welding environments where supplied air protection is needed.
  • MFR Part No's w/V100 cooling valve:  27-5702-10SW, 27-5702-20SW, 27-5702-30SW.
  • MFR Part No's w/V300 air-regulating valve:  27-5902-10SW, 27-5902-20SW, 27-5902-30SW.
  • Starting at $1,334.


These are the newest 3M Fresh-Air SAR systems featuring the 9100 series helmet & ADF.

The old Fresh-Air SAR systems with the 9000 helmet have been discontinued as of Feb. 2013.

The new series use the same valve assembly and accessories.


You have the choice of 3 Auto Darkening Filters (ADFs) for each configuration:
  • 9100V   = 1.8 inches x 3.7 inches, 6.05 sq. in. viewing area.
  • 9100X   = 2.1 inches x 4.2 inches, 9.12 sq. in. viewing area.
  • 9100XX = 2.8 inches x 4.2 inches, 12.11 sq. in. viewing area.

These are Made-To-Order by 3M as you order them, so allow approx. 2 week lead time.


View the new 3M™ Speedglas™ 2013 catalog pdf
(This is large file - allow a few minutes to download)


View the 3M Supplied Air Product Matrix pdf
3M 9100MP Fresh-Air III w/Cooling Valve
Qty


3M 9100MP Fresh-Air III w/Air-Regulating Valve
Qty




3M™ Air Supply Hoses


  • 3/8 inch inner diameter, equipped with MPT on both ends to accept 1/4 inch FPT fittings.
  • Hose length in 25, 50, 100 ft.
  • Coiled hose can only be used in single lengths. They cannot be combined.
3m w-9435 air hose

High Pressure Hose:  For use with V-100, V-200, V-300


  3m w-2929 air hose

High Pressure Hose:  For use with V-100, V-200, V-300

3M High Pressure Hose W-9435
Qty


3M High Pressure Hose W-2929
Qty



3M™ Air Filter Regulator Panels


  • The employer is required to ensure that the compressed air used with any supplied air system meets the requirements for Grade-D breathing air per the Compressed Gas Association Commodity Specification G-7.1-1997. In Canada, refer to CSA Standard Z180.1, table for the quality of compressed breathing air.
  • IMPORTANT: These filtered regulated panel products do not produce Grade-D breathing air.
3m filter & regulator panel

3M 50 CFM Filter and Regulator Panel

  • W-2806:  50 cfm Filter and Regulator Panel
  • Filters and regulates normal plant air. Helps to remove water, oil, particles, odors and vapors.
  • Does NOT remove carbon monoxide.
  • W-2811-10 filter cartridges are available 10/Pk
  • W-2808 CO Monitor sold separately.
  3m portable filter & regulator

3M 50 CFM Portable Filter and Regulator Panel

  • 256-02-00:  50 cfm Portable Filter and Regulator Panel
  • Four-stage filter process removes limited amounts of carbon monoxide and other contaminants without using large desiccant drying towers.
  • Note: 256-02-01, 100 cfm panel also available.
3M 50 CFM Filter and Regulator Panel
Item No. WLD3M-W-2806
Qty    $719.06


3M 50 CFM Portable Filter and Regulator Panel
Item No. WLD3M-256-02-00
Qty    $4,119.04

3M CO Monitor Kit for W-2806 Panel
Item No. WLD3M-W-2808
Qty    $1,969.48



3M™ Speedglas Fresh-Air III Supplied Air - Accessories/Replacement Parts

3M V-100 air-cooling valve

3M™ V-100 Vortex Air-Cooling Valve Assembly

  3m breathing tube


3M™ Fresh-Air III Supplied Air Breathing Tube, V-Series

3M V-100 Vortex Air-Cooling Valve
Item No. WLD3M-V100
Qty    $358.08


3M Fresh-Air III Breathing Tube, V-Series
Item No. WLD3M-19-0099-63
Qty    $106.93

3m air-heating valve

3M™ V-200 Vortemp Air-Heating Valve Assembly


3M V-200 Vortemp Air-Heating Valve
Item No. WLD3M-V200
Qty    $469.38







What's the Difference?
3m v300

3M V-300 Air Regulating Valve Assembly


  • V100 - High pressure valve, cools incoming air temp by up to 50 degrees.
  • V200 - High pressure valve, heats incoming air temp by up to 50 degrees.
  • V300 - High pressure straight-through valve only; no heating or cooling of air temperature.
  • V400 - Low pressure valve for use with ambient air pump, 10-15 psi.  (Shown on PPE 3M Supplied Air product page)
  • Fresh Air Temp-Air valve which could either cool or heat incoming air has been discontinued.
3M V-300 High Pressure Air Regulating Valve
Item No. WLD3M-V300
Qty    $156.90
